Product Overview

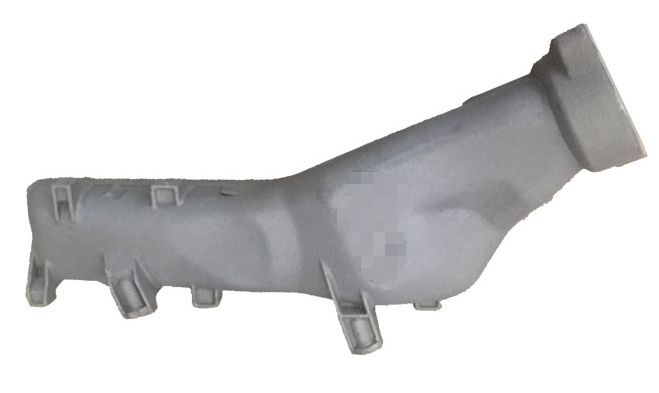

Auto Intake Pipe Fittings 13 is developed for demanding automotive assemblies where airflow, fluid transfer, or structural stability must remain consistent in serial production.
A356-T6 is a practical alloy choice for this part because it offers good strength, corrosion resistance, and heat-treat response, making it suitable for structural castings and flow components.
Gravity Casting gives this component good dimensional stability, dense section quality, and a clean casting surface that supports follow-up machining on sealing faces, ports, or mounting points.
This variant is typically supplied for automotive and passenger vehicles programs, with geometry tailored to OEM drawings, tooling requirements, and downstream assembly needs.
Material
A356-T6
Reviewed against drawing function, casting route, machining stock, corrosion expectations, and the buyer approval scope.
Manufacturing Process
Gravity Casting
The process plan should define mold route, pouring assumptions, post-casting machining, inspection points, and any sealing-surface requirements before quotation.
Buyer Path
RFQ evidence paths
Product RFQ package
What to send when quoting this part
Drawing package
2D PDF plus STEP/IGES if available; mark critical datums, sealing faces, ports, bores, threads, and assembly surfaces.
Volume and timing
Prototype quantity, first order quantity, annual demand range, target sample timing, and repeat-order schedule.
Material and process
Current page reference is A356-T6 with Gravity Casting; note accepted alternatives if your engineering team allows them.
Machining and inspection
CNC scope, CMM report needs, material certificate, leak test, PPAP, FAI, traceability, coating, packaging, and export destination.
Follow-up channel
Submit the site RFQ first; note NDA-first review needs and use email or WhatsApp only as fallback for failed delivery or manual drawing attachments.
Buyer sourcing proof
Automotive intake manifold and air-path casting
For diesel engine, truck, and automotive buyers sourcing aluminum intake castings where runner geometry, flange machining, port accuracy, and repeatable tooling matter to engine assembly approval.
Critical features
- Runner consistency and airflow-path geometry
- Flange flatness, port machining, and sensor boss locations
- Wall thickness, mounting faces, and under-hood corrosion exposure
Inspection scope
- CMM checks for ports, flanges, mounting datums, and boss positions
- Leak or pressure-related checks when the drawing specifies them
- Material certificate, heat treatment record, and sample inspection package
Quote assumptions
- Send 2D and 3D files with port, flange, and runner critical dimensions marked
- Clarify CNC finishing, surface finish, and any assembly leak requirement
- Confirm target engine platform, annual volume, and packaging or export needs
Applications
Start from this product page to pre-fill the buyer note with product name, material, process, and source URL.
Start RFQ for this productRelated Resources
Technical Details
Specifications
| Recommended Alloy | A356-T6 |
|---|---|
| Primary Process | Gravity Casting |
| Heat Treatment | T5 / T6 available |
| Dimensional Focus | Stable wall thickness and repeatable geometry |
| Application Focus | Airflow routing and under-hood durability |
| Typical Features | Internal runners, flange faces, machining pads |
Product RFQ FAQ
Questions buyers ask before quoting Auto Intake Pipe Fittings 13
Use these notes to prepare a drawing-based RFQ. Final pricing, tooling, sample timing, machining, and inspection scope depend on the actual drawing package and commercial requirements.
What should buyers send to quote Auto Intake Pipe Fittings 13?
Send a 2D PDF drawing, STEP or IGES model if available, target alloy or accepted equivalent, annual volume, sample quantity, machining scope, inspection requirements, destination country, and target timing. For Auto Intake Pipe Fittings 13, also note critical datums, sealing faces, ports, threads, or assembly surfaces if they affect final approval.
Which material and casting process are listed for Auto Intake Pipe Fittings 13?
This representative page lists A356-T6 and Gravity Casting. Final material, temper, casting process, machining allowance, and inspection scope should be confirmed from the drawing, wall thickness, tolerance stack, functional requirement, and annual demand during RFQ review.
Can Bohua review machining and inspection requirements for Auto Intake Pipe Fittings 13?
Yes. Buyers should mark CNC datums, bores, sealing faces, thread requirements, surface finish, CMM report needs, material certificate needs, leak-test scope, PPAP, FAI, or traceability requirements in the RFQ. Bohua reviews the casting and post-casting scope together instead of quoting only the raw casting shape.
Is Auto Intake Pipe Fittings 13 a standard stock item?
Bohua product pages show representative custom aluminum casting work. Most OEM projects are quoted from buyer drawings rather than sold as stock catalog parts. Send the drawing package and sourcing context for project-specific feasibility, tooling, sample, machining, inspection, and export review.
